Trailed zero grazers
Quick green waste collection.

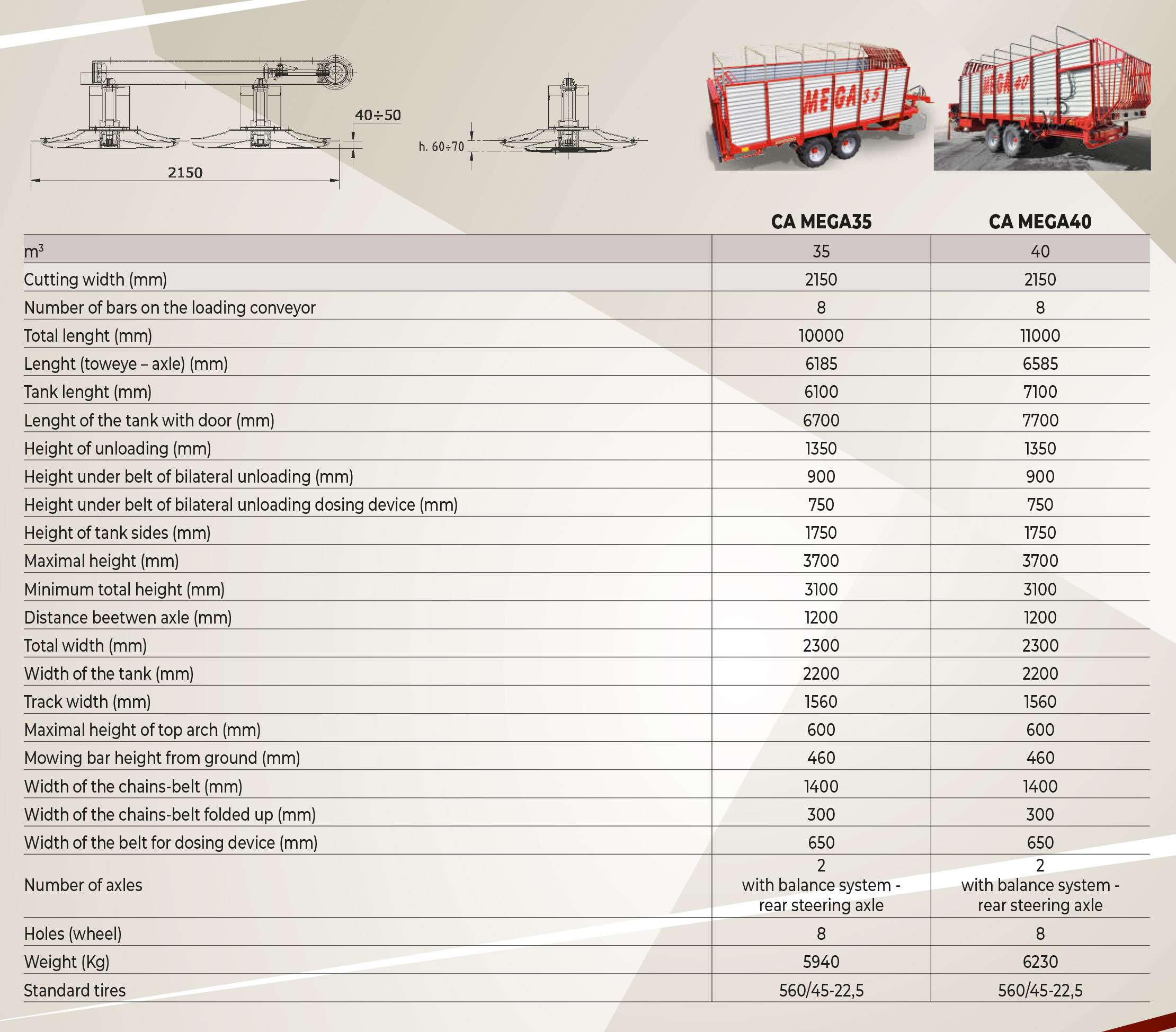

MEGA version with a load capacity of 35 m³ to 40 m³.
All machines are equipped with an independent hydraulic pump (to make hitching to the tractor easier) and a PTO shaft with freewheel and clutch as standard that drives the rotary scythe with a cutting width of 2150 mm.
The mechanically driven rotary scythe is independent of the frame and equipped with a suspension system. These features allow the mowing unit to adapt perfectly to changes in slope for a uniform cut across the entire area.
STANDARD EQUIPMENT:
1 CUTTER / LIFT
• Cutting width 215 cm
• Hydraulic loading lift with width reducer 128 cm
• One knife on lift
• Spring shock absorbers on rotary and lift
2 CASINGS
• Pre-painted sheet metal sides
• Support foot
3 TRANSMISSION
• Built-in hydraulic system
• Opening and closing of the drawbar on hydraulic sockets Tractor
• Hydraulic rear unloading with 4 chains
• Hitch to the tractor above the PTO
• PTO shaft
• Intermediate drawbar support with constant velocity PTO shaft on the rotary side
4 CONTROLS
• Digital control unit with display (belt advancement adjustment from the driver's seat)
5 MISCELLANEOUS
• Rear hatch with mechanical opening and closing
• Dual-axis rocker arm with pneumatic braking
• Rear steering axle
• Wear disc provision for cutting height adjustment
